Qcells solar modules

Individual photovoltaics for maximum success

Q.ANTUM DUO SOLAR MODULES

Q.PEAK DUO

ML-G11S.2

up to 21.5 % efficiency

up to 510 Wp

12 years warranty

Q.PEAK DUO

ML-G11S.2+

up to 21.5 % efficiency

up to 510 Wp

25 years warranty

Q.PEAK DUO

M-G11S

up to 21,5 % efficiency

up to 420 Wp

12 years warranty

Q.PEAK DUO

M-G11S+

up to 21,5 % efficiency

up to 420 Wp

12 years warranty

Q.PEAK DUO

BLK M-G11S

up to 21 % efficiency

up to 410 Wp

12 years warranty

Q.PEAK DUO

BLK M-G11S+

up to 21 % efficiency

up to 410 Wp

25 years warranty

Q.ANTUM NEO SOLAR MODULES

Q.TRON

BLACK

up to 22.3 % efficiency

up to 445 Wp

30 years warranty

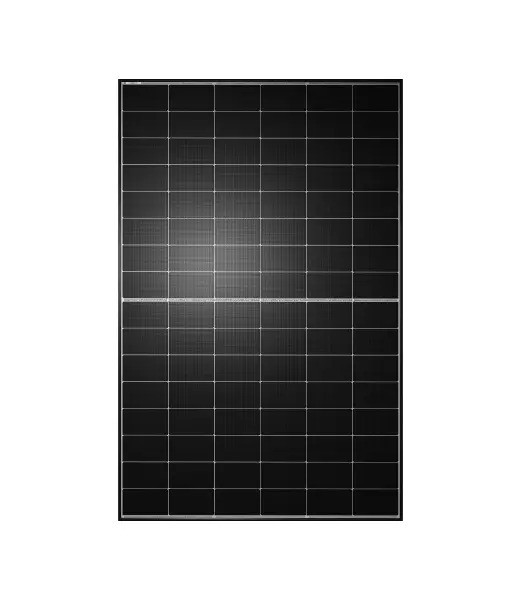

Q.TRON

CLASSIC

up to 22.5 % efficiency

up to 450 Wp

30 years warranty

Q.TRON

M-G2+

up to 22.3 % efficiency

up to 435 Wp

25 years warranty

Q.TRON

BLK M-G2+

up to 22 % efficiency

up to 430 Wp

25 years warranty


Q.TRON benefits

High-efficient cell technology

Q.ANTUM NEO Technology with optimized module layout boosts module efficiency up to 22.5%.

Extreme weather rating

High-tech aluminum alloy frame, certified for high snow (8100 Pa) and wind loads (3600 Pa).

Enduring high performance

Long-term Advanced Yield Security with Advanced Anti-PID, Advanced Anti-LeTID, and Hot-Spot Protect.

Innovative all-weather technology

Optimal yields, whatever the weather with excellent low-light and temperature behavior.

A reliable investment

Inclusive 25-year product warranty and 25-year linear performance warranty.

The most thorough testing programme in the industry

Qcells is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new “Quality Controlled PV” of the independent certification institute TV Rheinland.


Q.TRON SOLAR MODULES

FOR OUTSTANDING QUALITY & PERFORMANCE

PROTECT YOUR ROOF EVEN FROM EXTREME WEATHER CONDITIONS

Q.TRON N-type modules are designed to resist heavy snow and windy environment even with the frame thickness of 30 mm. The thinner frame makes the module lighter providing transportation and easy installation benefits.

Q.TRON solar panels with global standard mounting option can withstand 5400 / 3600 Pa, which covers most of the regions with extreme environment conditions.

Among extreme weather conditions like storms, blizzards and high winds, hail is the most concerning type for solar panel owners looking to protect their investment. Generally, solar panels are tested to withstand hails of 25 mm diameter.

Qcells’ high quality Q.TRON solar panels are qualified to 45 mm diameter hail test, far beyond industry standard.

PERFORMANCE

  • Cell Technology: 6×18 monocrystalline Q.ANTUM NEO solar half cells
  • Nominal Power: 405~435Wp
  • Wind/Snow Load: 5400/3600 Pa

EFFICIENCY

  • Module Efficiency: Up to 22.3%
  • Temperature Coefficient: -0.30%/K
  • Temperature Tolerance: -40°C up to 85°C

DESIGN

  • Format (including frame): 1722 mm × 1134 mm × 30 mm
  • Weight: 21.2 kg
  • Frame: Black anodized aluminum
  • Color: All-black aesthetics

WARRANTY

  • Product Warranty: 25 years
  • Performance Warranty: 25 years
